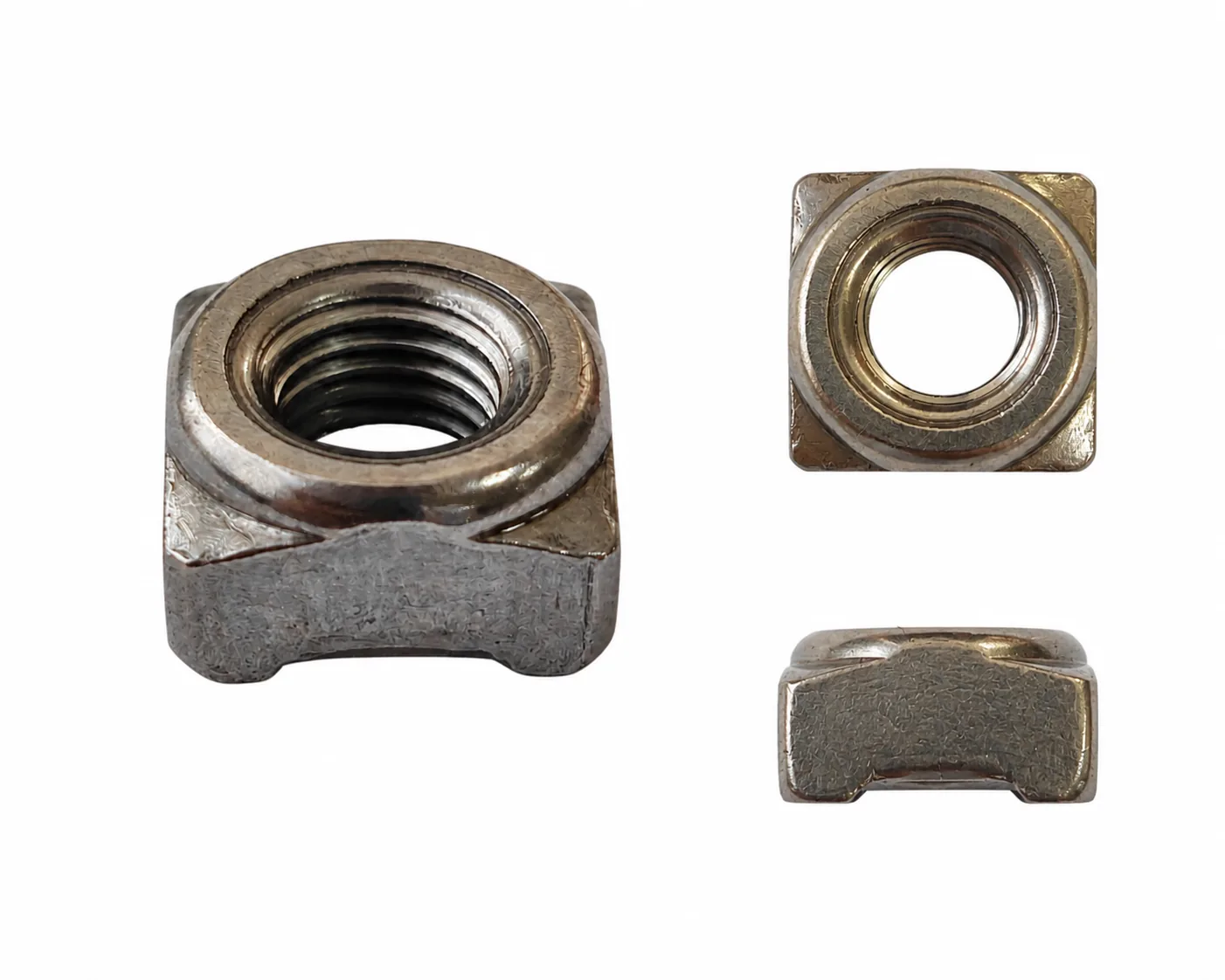

Type A weld nuts
M3-M16. Typical listed materials include SWRCH8A, SWRCH10A, SWRCH18A, SWRCH22A and 10B21.
Standard fastener
Weld nuts supplied to standard, specification or drawing.
Types A and B for sheet-metal brackets and assemblies. Final geometry, weld features, thread, material and surface treatment are confirmed against the applicable standard or approved project inputs.
Product range
Two documented weld-nut families.
Available evidence covers Types A and B in the M3-M16 range.

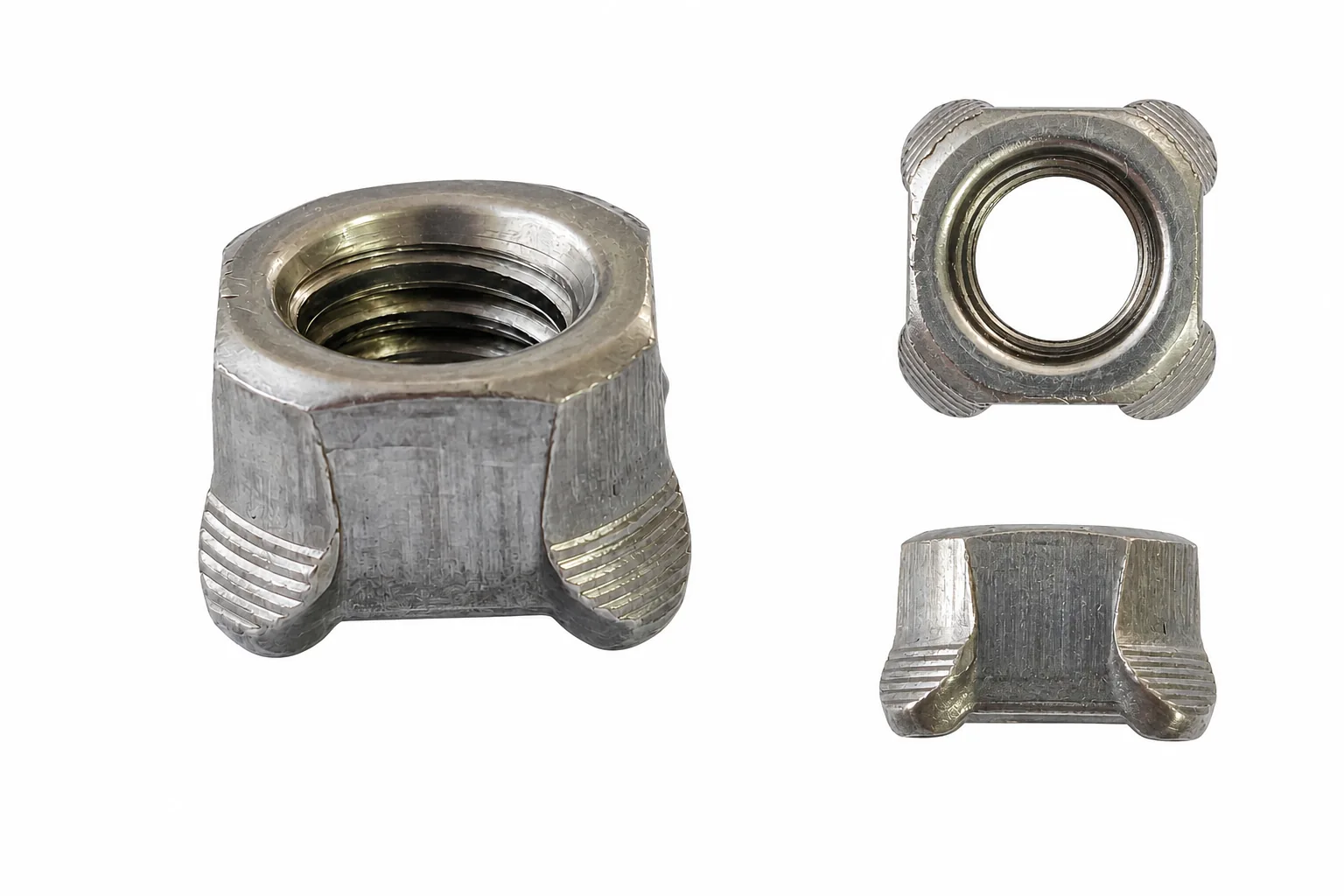

Type B weld nuts
Alternative geometries for drawing-specific sheet-metal fastening positions and weld configurations.
Project definition
Confirm the joint before quotation.
Thread and geometry
Identify the standard, thread size, panel interface and weld projection details.
Material and process
Typical process route includes cold forming, tapping and weld-feature control.
Inspection
Define thread gauges, critical dimensions, weld features and required records.
